Fully Frameless
Side Fix Channel 2.5

£200.77£204.36

In stock

Get a Quote
satin finish side fix channel system

Fully Frameless Side Fix Channel 2.5

£200.77£204.36

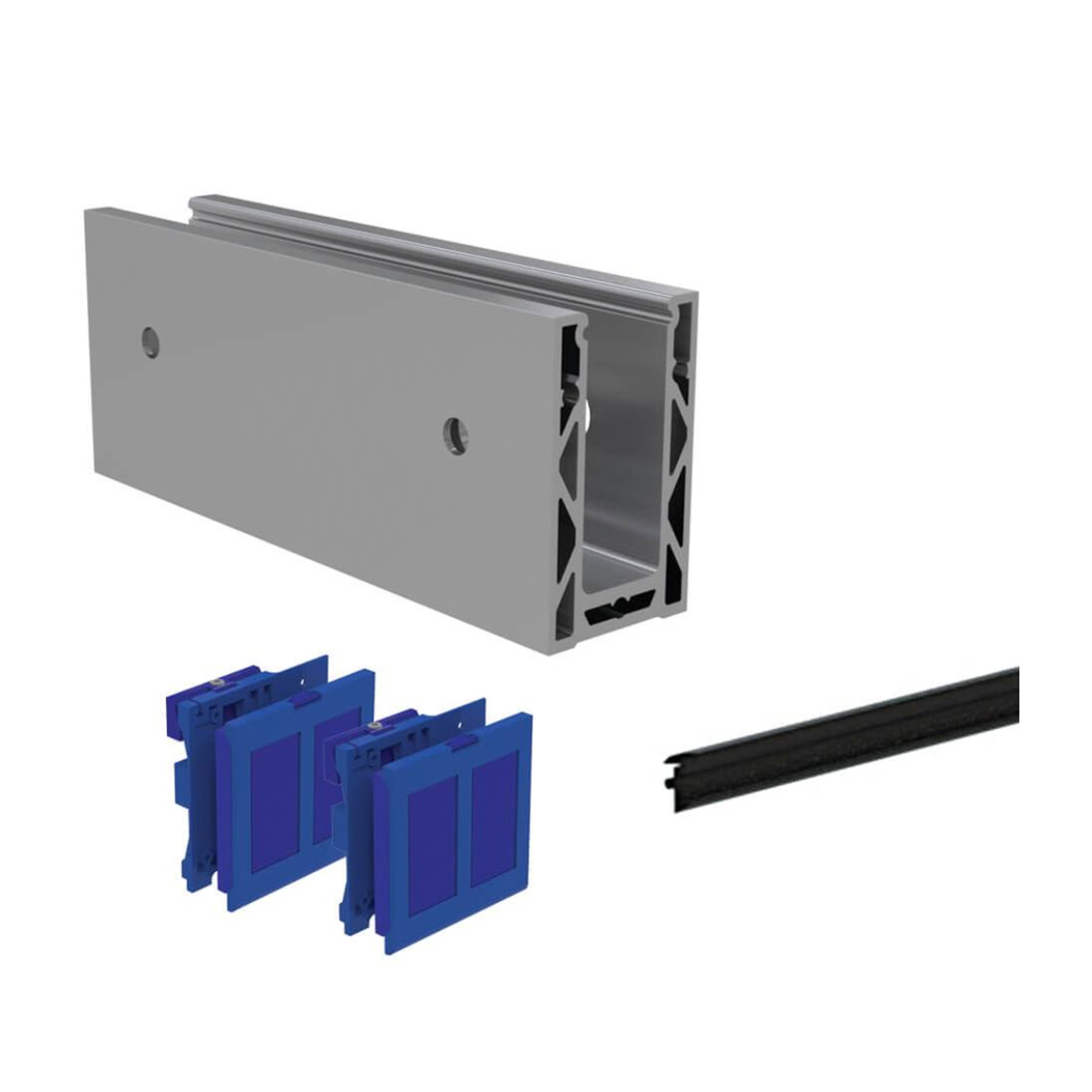

Deliver a sleek, frameless finish with the Satin Side Fix Aluminium Channel, purpose-built for mounting glass balustrades to the side of raised patios, balconies, and decking. This 2.5m aluminium channel suits 20.76–21.5mm glass and works seamlessly with our Wedge-Loc Duo™ system, offering quick, secure installation with a low-profile aesthetic. Finished in corrosion-resistant satin anodised aluminium, it's ideal for modern outdoor balustrades up to 1.5kN. Other sizes available for 16.76–17.52mm and 19mm glass. Channel can also be cut to length on site by the installer for a perfect custom fit.

Important measurements: When measuring for glass, we advise back of one clamp to the back of another clamp, minus 10mm for expansion and tolerances. Check the post/spigot/channel system fittings measurements. When using the channel system or the spigots systems we advise a minimum of 10mm and maximum of 99mm gap between panes, 20mm is best average.



Does it comply with building regulations?

For installations at heights with a drop of 600mm or more, glass thickness must be 17.5mm to 21.5mm installed to meet UK building regulations. In lower-height applications, a thinner glass pane can be used

What is the delivery time frame for this product?

This product is dispatched straight from the warehouse.

If you are only ordering the posts, these will be sent via a courier with a lead time of 4-10 working days, from date of order completed email (not confirmation of order email).

If you are ordering a full balustrade system, posts and glass this will arrive on a wagon/lorry. Lead time of 5-10 working days from date of order completed email (not confirmation of order email).

For all orders you will be required to assist with unloading of the order. Please ensure you have 1-2 able persons to assist with receiving your order.

Will the balustrade rust over time?

No it won’t rust. As it is made from grade 316 stainless steel which is designed for outdoor use.

Do you accept returns?

We do accept returns. The products must be returned to us at your own cost within 28days. It must be in its original packaging, unused and in perfect re-sellable condition. You must attach your name and order number to the box/s in order for the warehouse team to be able to assign the return to your order.  When it is received at the warehouse the team will check the items and inform as to if they are in good condition for us to action a refund.

How to order posts for glass?

When ordering channel system and glass for your balustrade, it is essential to check the post measurements, including the dimensions with the clamps attached. To ensure a perfect fit, measure from the inside back of one post clamp to the inside back of the next post clamp in the balustrade run.

Selecting the correct glass pane size based on these measurements will ensure a secure and seamless installation. Always double-check your measurements before ordering to avoid any discrepancies and achieve a professional finish.

It is at the companies discretion to charge for returns should you order the incorrect size glass and/or posts for your project.

Important measurements: When measuring for glass, we advise back of one clamp to the back of another clamp, minus 10mm for expansion and tolerances. Check the post/spigot/channel system fittings measurements. When using the channel system or the spigots systems we advise a minimum of 10mm and maximum of 99mm gap between panes, 20mm is best average.

This product is dispatched straight from the warehouse.

If you are only ordering the posts, these will be sent via a courier with a lead time of 4-10 working days, from date of order completed email (not confirmation of order email).

If you are ordering a full balustrade system, posts and glass this will arrive on a wagon/lorry. Lead time of 5-10 working days from date of order completed email (not confirmation of order email).

For all orders you will be required to assist with unloading of the order. Please ensure you have 1-2 able persons to assist with receiving your order.
