‘D’ Shape Clamp – Semi Frameless (Black)

Description

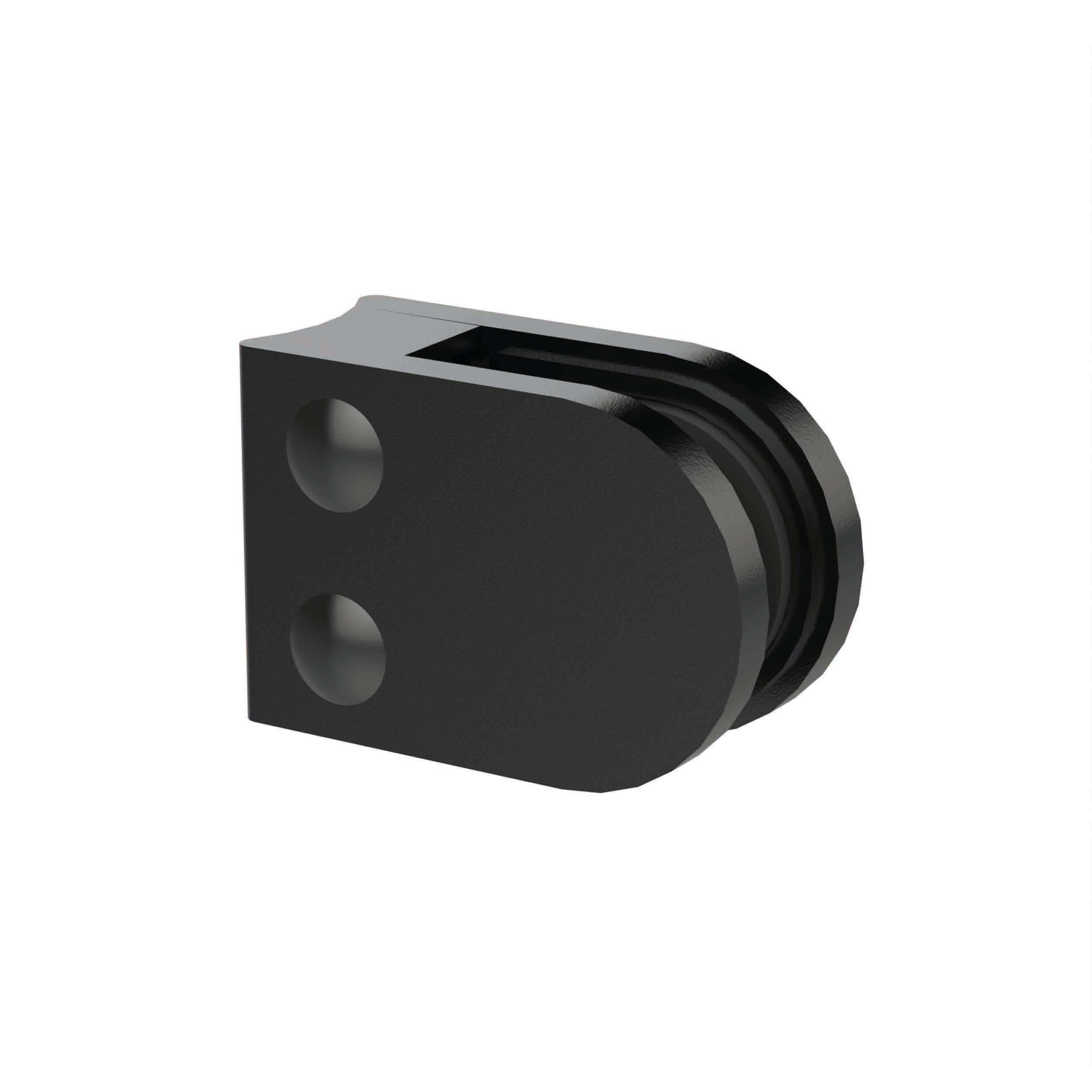

The black ‘D’ shape glass clamp grips a glass balustrade panel against a 42.4mm round post — the glass simply clamps in place through rubber gaskets, with no holes drilled in the panel. It is made from 304 stainless steel with a black powder-coated finish and accepts glass from 10mm to 12mm thick, including the 10mm toughened panels our systems use as standard.

This glass balustrade clamp fits two of our systems: the Semi-Frameless Glass Balustrade System in Black and the Post & Handrail Glass Balustrade System in Black. Posts in both ranges arrive with their clamps pre-fitted — two on an end post, four on mid and corner posts — so this page is for spares, replacements or extra fixing points.

A satin stainless steel version is available to match the uncoated 316 ranges.

Specifications

What’s Included

Installation Guide

Useful Documents

FAQs

• Which systems does this clamp fit?

  Both the semi-frameless and post & handrail glass balustrade systems in black — the two ranges share the same 42.4mm posts and the same D-shape clamp.

• Are the rubber gaskets included?

  Yes — each clamp comes with its gaskets, which cushion the glass inside the clamp and let it grip a 10–12mm panel securely without any drilling.
