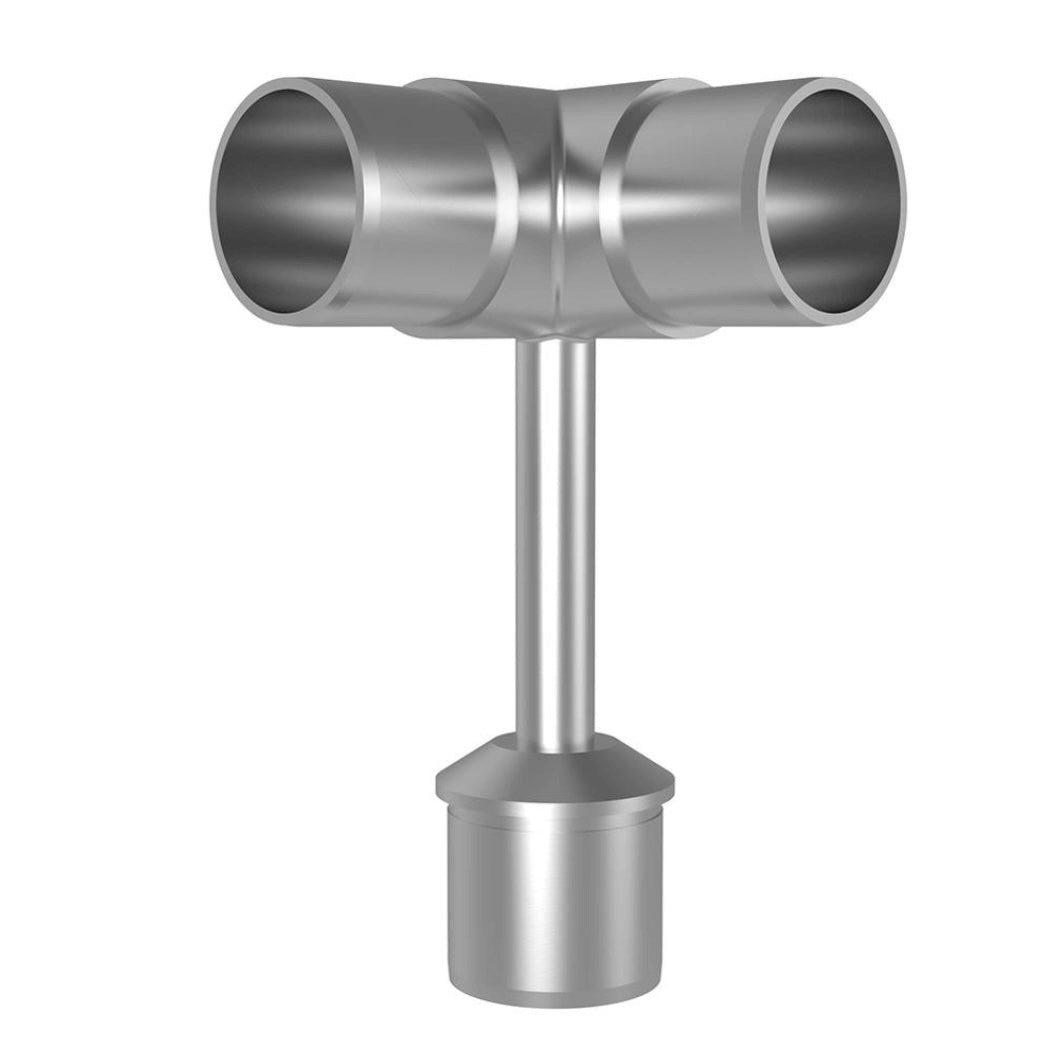

End Elbow Handrail Bracket with 90° angle (Satin)

Description

The satin 90° end elbow bracket turns the handrail around a right-angle corner in the uncoated 316 range. It sits at the corner of the run and joins two lengths of 42.4mm tube through a fixed 90° elbow, so the handrail stays continuous through the turn. Being 316 marine-grade stainless steel, it holds its satin finish on coastal and exposed installations.

It handles square corners only; for staircases, slopes or corners that are not a true 90°, use the satin adjustable elbow, which pivots to the angle you need.

It serves the Post & Handrail Glass Balustrade System in Satin; a black powder-coated version matches the 304 black range.

Specifications

What’s Included

Installation Guide

Useful Documents

FAQs

• When do I need the end elbow rather than the flush scroll end?

  They do opposite jobs. The end elbow carries the handrail around a 90° corner and on to the next run; the flush angle scroll end closes off an open tube end where the handrail finishes.

• Is this the same steel as the satin handrail tube?

  Yes — uncoated 316 marine-grade stainless steel with a satin finish, so the elbow matches the tube, posts and saddles in both material and appearance.
