Side Fix Mid Post – 978mm – Satin
Key Features
SKU:
PHS-MID-S
Availability:
Many In Stock
Subtotal:
£121.00inc VAT
Secure checkout — pay your way
Delivery: £60 to most UK mainland — free on orders over £2,000. Delivered within 3-4 weeks;
exact cost confirmed at checkout by postcode.
Full delivery & returns details →
Full delivery & returns details →
Fully Compliant to British Building Regulations
Designed in line with BS 6180:2011
Couldn't load pickup availability
Description

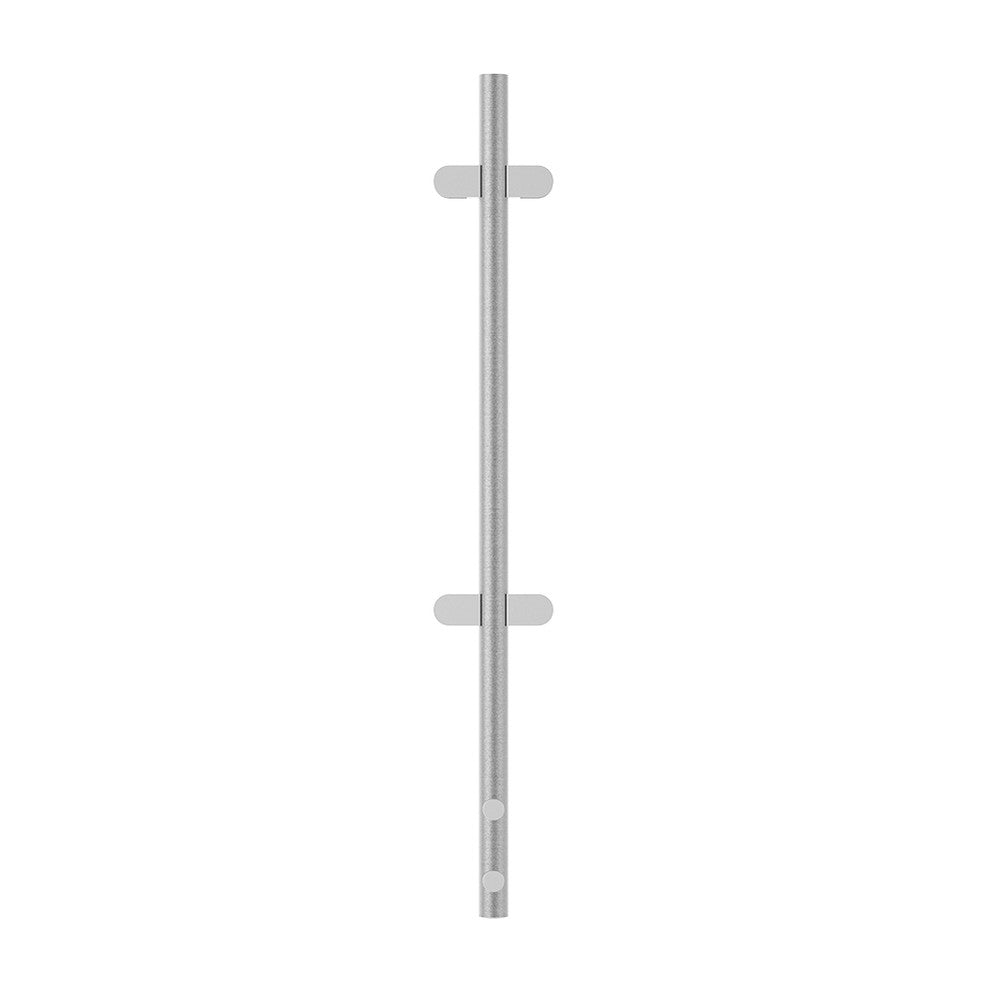

The side fix mid post sits between glass panels in a run of our side mounted post & handrail glass balustrade, where the posts fix to the face of the structure (the edge of a deck, landing, balcony or stair string) instead of on top of it. It's a 42.4mm diameter post in uncoated 316 marine-grade stainless steel with a satin brushed finish, with four glass clamps pre-fitted, two each side, for the system's 10mm toughened glass.

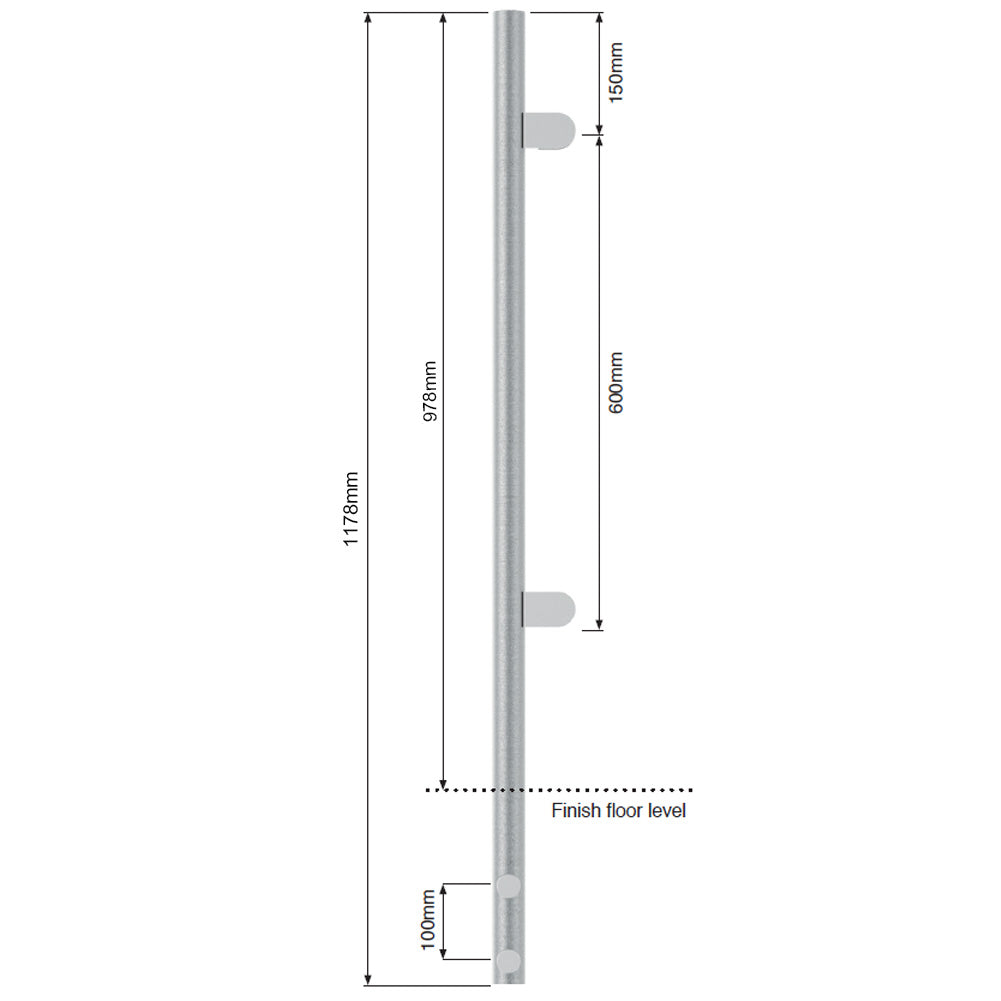

The post is 1178mm long and fixes to the face through its lower section, leaving 978mm above floor level. That's the same height as our surface-fix posts, so the saddle and 42.4mm handrail on top give the same 1100mm finished height. Glass panels are 900mm high, with posts at up to 1200mm centres. The system is designed in line with BS 6180:2011.
The saddle, handrail tube and glass are sold separately, and fixings are not included. See the full side mounted glass balustrade range.
Specifications
| Specification | Value |
|---|---|
| Material | 316 Stainless Steel |
| Colour | Satin |
| Finish | Brushed / Uncoated (Marine Grade) |
| Type | Side Fix Mid Post — Post & Handrail System |
| Post Length | 1178mm overall |
| Height Above Floor | 978mm |
| Finished Height | 1100mm (with saddle and handrail fitted) |
| Diameter | 42.4mm |
| Clamps | 4, pre-fitted |
| Clamp Centres | 600mm (bottom clamp to top clamp) |
| Glass | 10mm toughened, 900mm high |
| Weight | 3.75kg |
| Fixing Method | Side fix to the face of the structure |
What’s Included
| Post | 1 × 1178mm side fix post |
| Clamps | 4 × glass clamps, pre-fitted |
| Saddle | Sold separately — fits to the post top |
| Not Included | Fixings, glass, handrail tube |
Useful Documents
-
TOL PHS BAL Technical Specification 1
-
TOL PHS BAL Care Maintenance 1
-
TOL PHS BAL Troubleshooting 1
