Side Fix External Corner Post – Satin
Key Features
SKU:
PHS-CORNEREXT-S
Availability:
Many In Stock
Subtotal:
£144.50inc VAT
Secure checkout — pay your way
Delivery: £60 to most UK mainland — free on orders over £2,000. Delivered within 3-4 weeks;
exact cost confirmed at checkout by postcode.
Full delivery & returns details →
Full delivery & returns details →
Fully Compliant to British Building Regulations
Designed in line with BS 6180:2011
Couldn't load pickup availability
Description

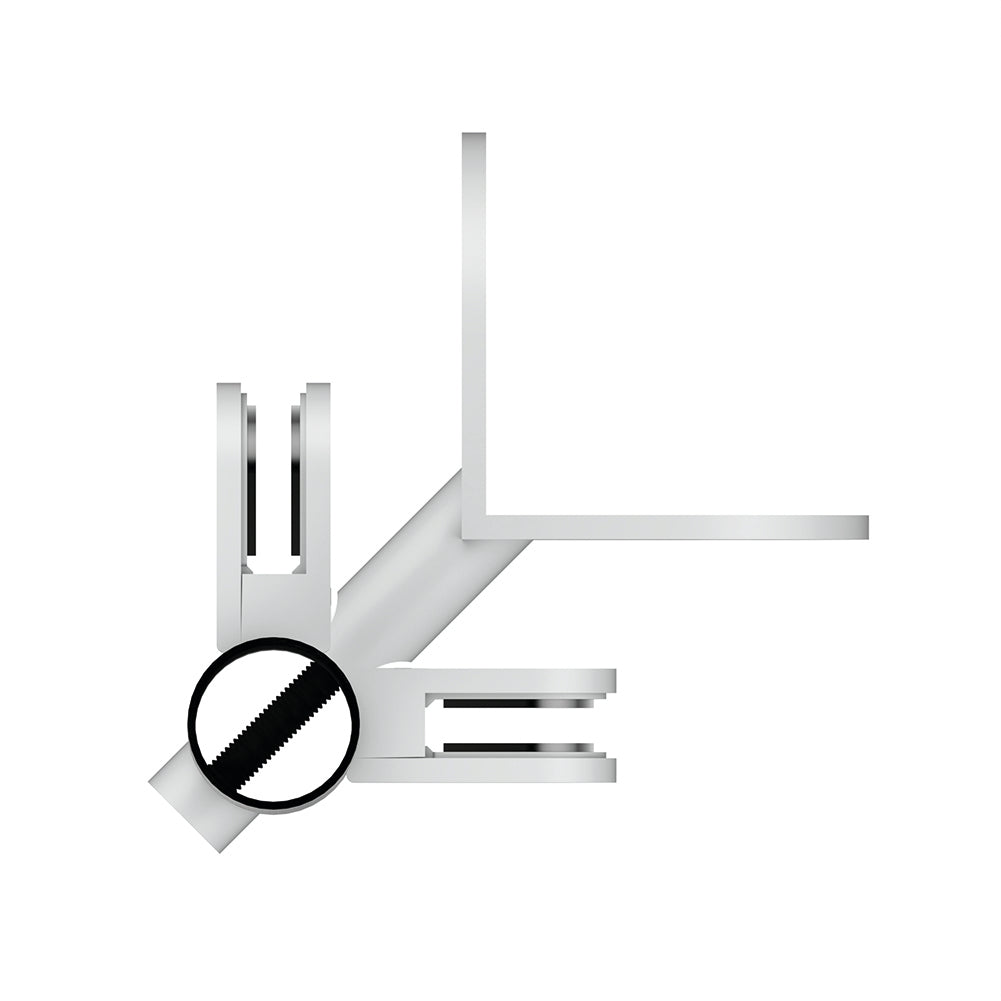

The side fix external corner post turns a run of our side mounted post & handrail glass balustrade around an outside corner, such as the corner of a raised deck or balcony. It's a 42.4mm diameter post in uncoated 316 marine-grade stainless steel with a satin brushed finish, with four glass clamps pre-fitted, two on each face, and it comes with an external corner wall bracket that fixes the post to both faces of the corner.
It's part of the same system as our side fix end and mid posts, taking the system's 10mm toughened glass, 900mm high, with posts at up to 1200mm centres. The system is designed in line with BS 6180:2011.
Handrail fittings, tube and glass are sold separately, and fixings are not included. For an inside corner, use the side fix internal corner post. See the full side mounted glass balustrade range.
Specifications
| Specification | Value |
|---|---|
| Material | 316 Stainless Steel |
| Colour | Satin |
| Finish | Brushed / Uncoated (Marine Grade) |
| Type | Side Fix External Corner Post — Post & Handrail System |
| Diameter | 42.4mm |
| Clamps | 4, pre-fitted (2 each face) |
| Bracket | External corner wall bracket, 316 satin |
| Glass | 10mm toughened, 900mm high |
| Weight | 4.32kg |
| Fixing Method | Side fix to an outside corner |
What’s Included
| Post | 1 × side fix corner post |
| Clamps | 4 × glass clamps, pre-fitted |
| Bracket | 1 × external corner wall bracket |
| Not Included | Fixings, handrail fittings, glass, handrail tube |
Useful Documents
-
TOL PHS BAL Technical Specification 1
-
TOL PHS BAL Care Maintenance 1
-
TOL PHS BAL Troubleshooting 1
