Side Fix Internal Corner Post – Satin
Key Features
SKU:
PHS-CORNERINT-S
Availability:
Many In Stock
Subtotal:
£138.50inc VAT
Secure checkout — pay your way
Delivery: £60 to most UK mainland — free on orders over £2,000. Delivered within 3-4 weeks;
exact cost confirmed at checkout by postcode.
Full delivery & returns details →
Full delivery & returns details →
Fully Compliant to British Building Regulations
Designed in line with BS 6180:2011
Couldn't load pickup availability
Description

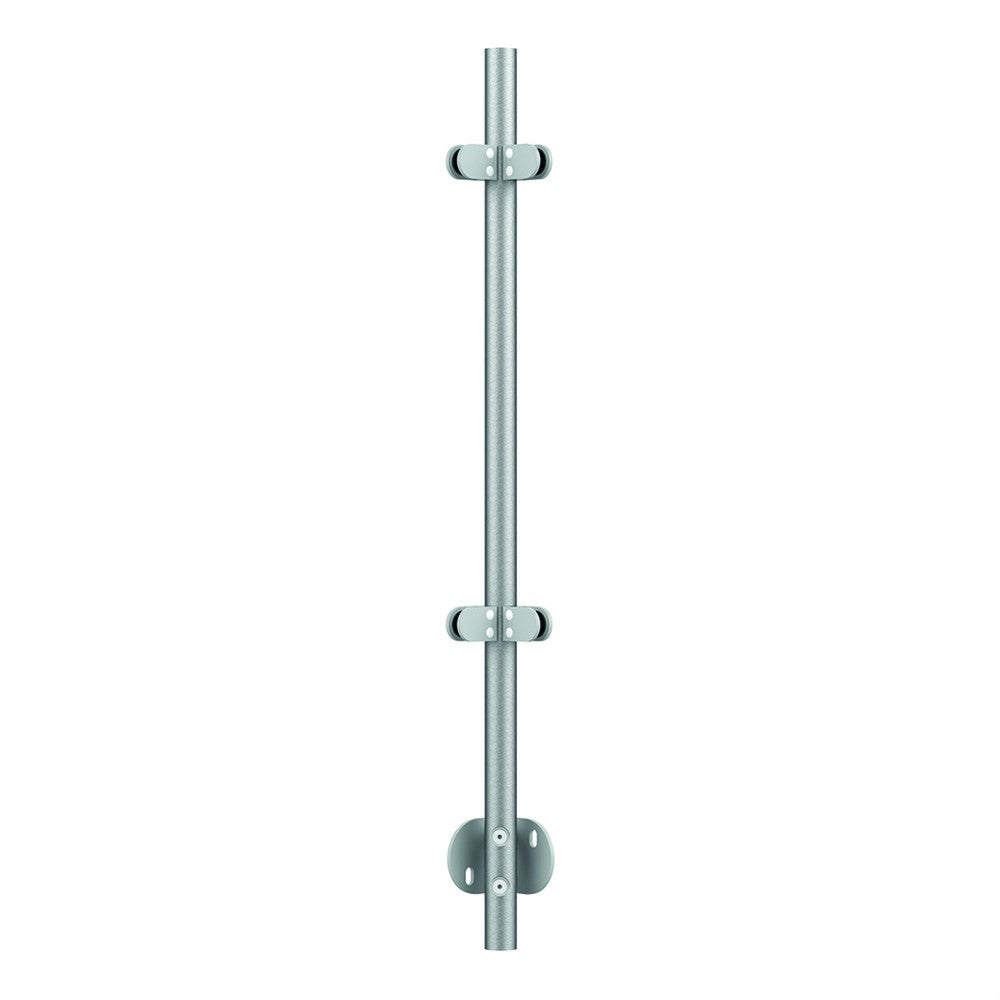

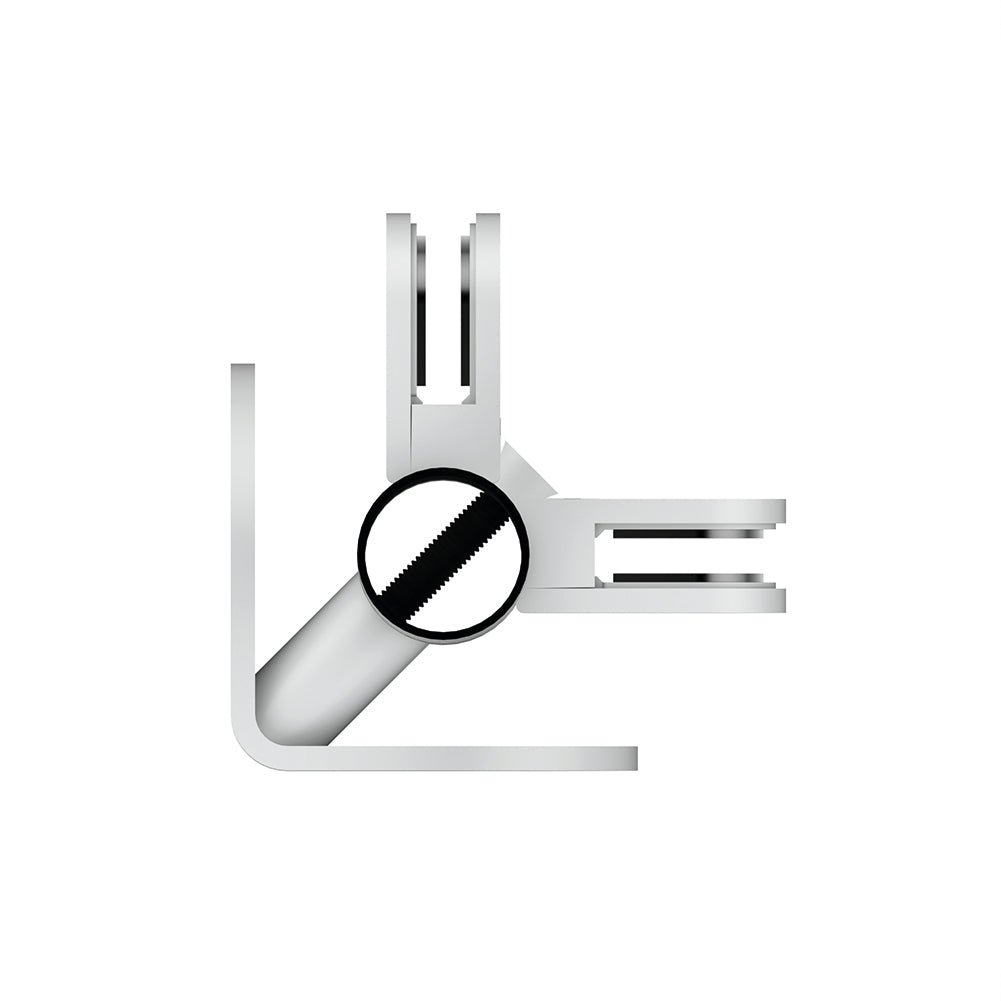

The side fix internal corner post turns a run of our side mounted post & handrail glass balustrade around an inside corner, where the structure turns inwards. It's a 42.4mm diameter post in uncoated 316 marine-grade stainless steel with a satin brushed finish, with four glass clamps pre-fitted, two on each face, and it comes with an internal corner wall bracket that fixes the post into the corner.

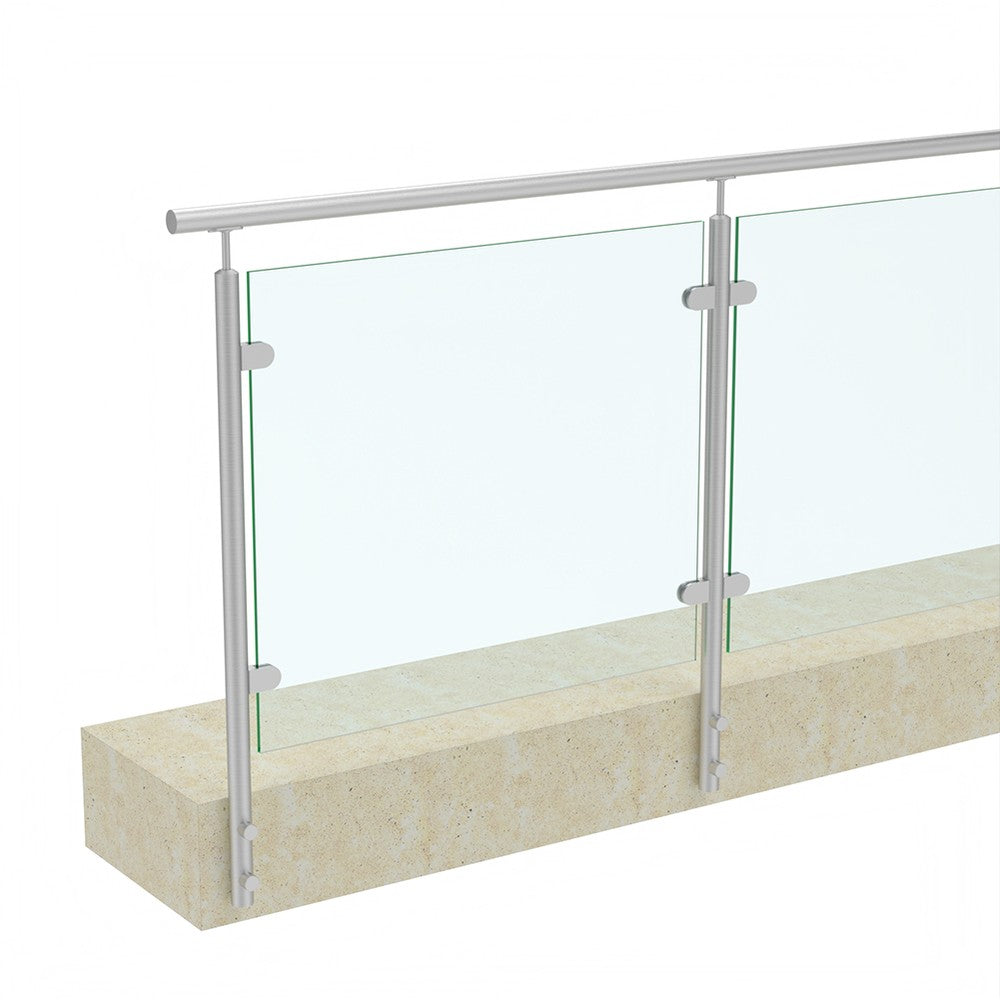

It's part of the same system as our side fix end and mid posts, taking the system's 10mm toughened glass, 900mm high, with posts at up to 1200mm centres. The system is designed in line with BS 6180:2011.
Handrail fittings, tube and glass are sold separately, and fixings are not included. For an outside corner, use the side fix external corner post. See the full side mounted glass balustrade range.
Specifications
| Specification | Value |
|---|---|
| Material | 316 Stainless Steel |
| Colour | Satin |
| Finish | Brushed / Uncoated (Marine Grade) |
| Type | Side Fix Internal Corner Post — Post & Handrail System |
| Diameter | 42.4mm |
| Clamps | 4, pre-fitted (2 each face) |
| Bracket | Internal corner wall bracket, 316 satin |
| Glass | 10mm toughened, 900mm high |
| Weight | 4.32kg |
| Fixing Method | Side fix to an inside corner |
What’s Included
| Post | 1 × side fix corner post |
| Clamps | 4 × glass clamps, pre-fitted |
| Bracket | 1 × internal corner wall bracket |
| Not Included | Fixings, handrail fittings, glass, handrail tube |
Useful Documents
-
TOL PHS BAL Technical Specification 1
-
TOL PHS BAL Care Maintenance 1
-
TOL PHS BAL Troubleshooting 1
